MG20XU

MG16XU

MG12XU

MG10XU

MG06X
Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) SPX algorithm: 24 programs SPX algorithm: 6 programs
I/O Phantom power +48 V +48 V +48 V +48 V +48 V
Digital I/O USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit -
Input Channels Mono[MIC/LINE] 12 8 4 4 2
Mono/Stereo[MIC/LINE] 4 2 2 - -
Stereo[LINE] - 2 2 3 2
Output Channels STEREO OUT 2 2 2 2 2
MONITOR OUT 1 1 1 1 -
PHONES 1 1 1 1 1
AUX SEND 4 4 2 1 -
GROUP OUT 4 4 2 - -
Bus Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) Stereo: 1, AUX[FX]: 1 Stereo: 1
Input Channel Function PAD 26 dB (Mono) 26 dB (Mono) 26 dB (Mono) 26 dB (Mono) 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) 80 Hz, 12 dB/oct (Mono) 80 Hz, 12 dB/oct (Mono)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec -
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking -
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping LED turns on when post EQ signal reaches 3 dB below clipping LED turns on when post EQ signal reaches 3 dB below clipping LED turns on when post EQ signal reaches 3 dB below clipping LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

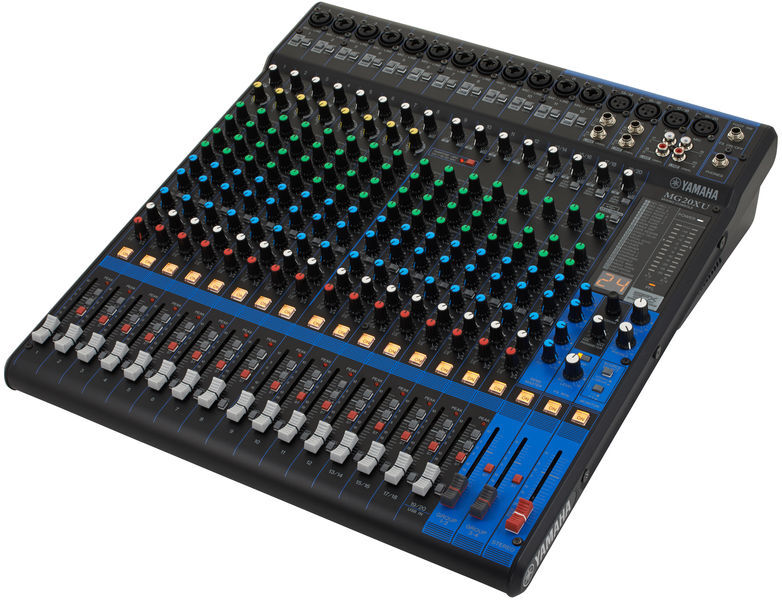

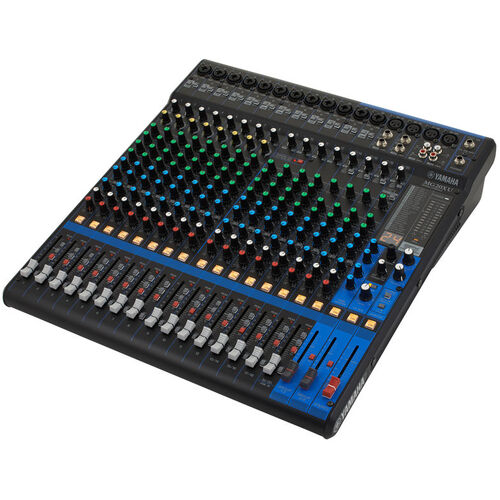

SKU MG20XU
Brand YAMAHA
Shipping Weight 8.0000kg
Shipping Width 0.475m
Shipping Height 0.150m
Shipping Length 0.520m
