OVERVIEW

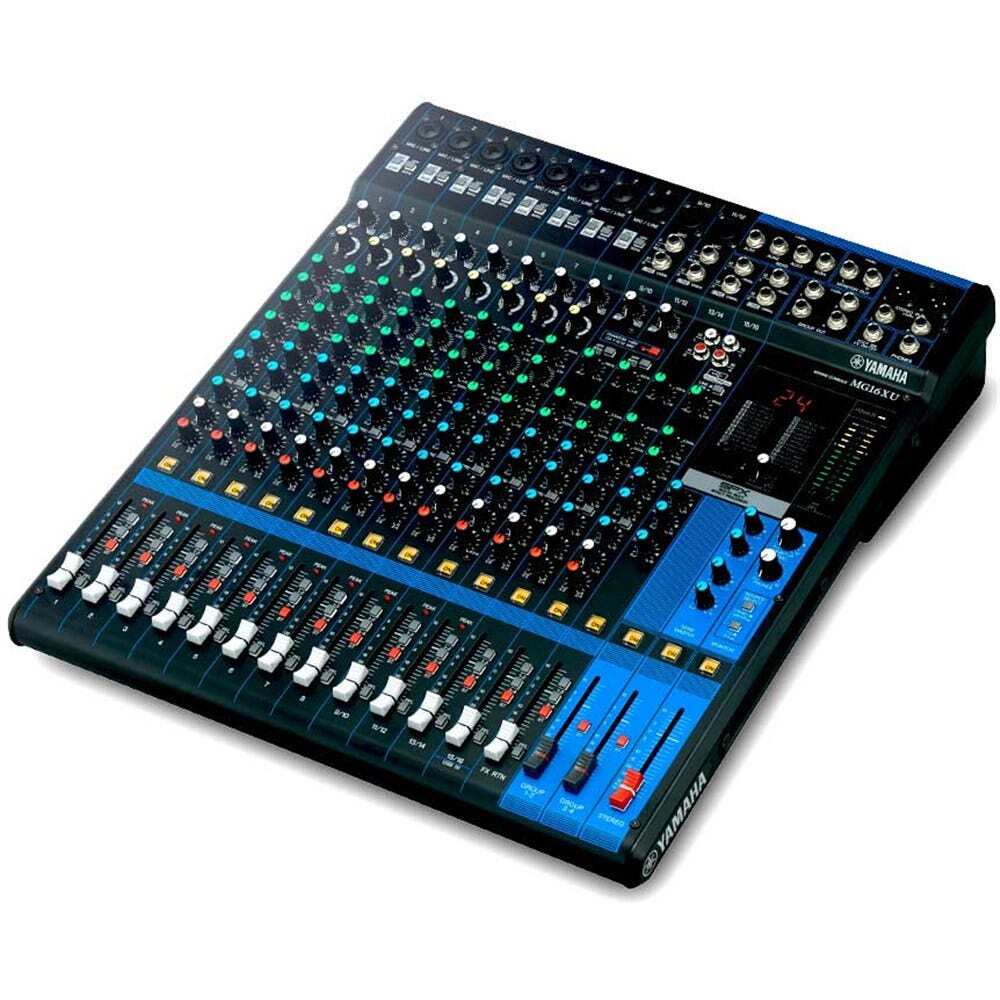

Now in its third incarnation, the MG Series embodies the pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. The MG16XU is the 16-channel version of the series, with eight mono XLR and 1/4" hybrid inputs along with two mono/stereo [MIC/LINE] inputs and two stereo line inputs.

The MG16XU boasts an intuitive interface with capacities suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability that has made it a leader in its class.

FEATURES
  • Outstanding microphone preamps
  • Switchable Phantom Power & PAD Switch
  • 1-knob Compressors
  • EQ and High-pass Filters
  • AUX / Effect Sends / Group
  • LED level metering
  • Built-in SPX Digital Effects
  • Metal Chassis
  • USB

Studio quiet and barroom loud. Order today.

SPECIFICATIONS

MG16XU 16-Channel Mixer

  • On-board processors : SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
  • Phantom power: +48 V
  • Digital I/O: USB Audio Class 2.0 compliant, Max 192 kHz, 24-bit
  • Input Channels: 8 Mono[MIC/LINE], 2 Mono/Stereo[MIC/LINE], stereo[LINE]: 2
  • Output Channels: STEREO OUT: 2
  • MONITOR OUT: 1
  • PHONES: 1
  • AUX SEND: 4
  • GROUP OUT: 4
  • Bus: Stereo: 1, GROUP, AUX: 4
  • Input Channel Function
  • PAD: 26 dB (Mono)
  • HPF: 80 Hz, 12 dB/oct (Mono)
  • COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
  • EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter: 2 x 12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
SKU MG16XU
Brand YAMAHA
Shipping Weight 7.0000kg
Shipping Width 0.560m
Shipping Height 0.220m
Shipping Length 0.510m
