Be Heard Anywhere

Wherever you perform, high-quality sound with great projection is essential to capture listeners and stand out from the pack. With the portable CUBE Street II by your side, you have the tools you need to deliver your message with confidence in any mobile setting, from musical performances on the street to public speaking events.

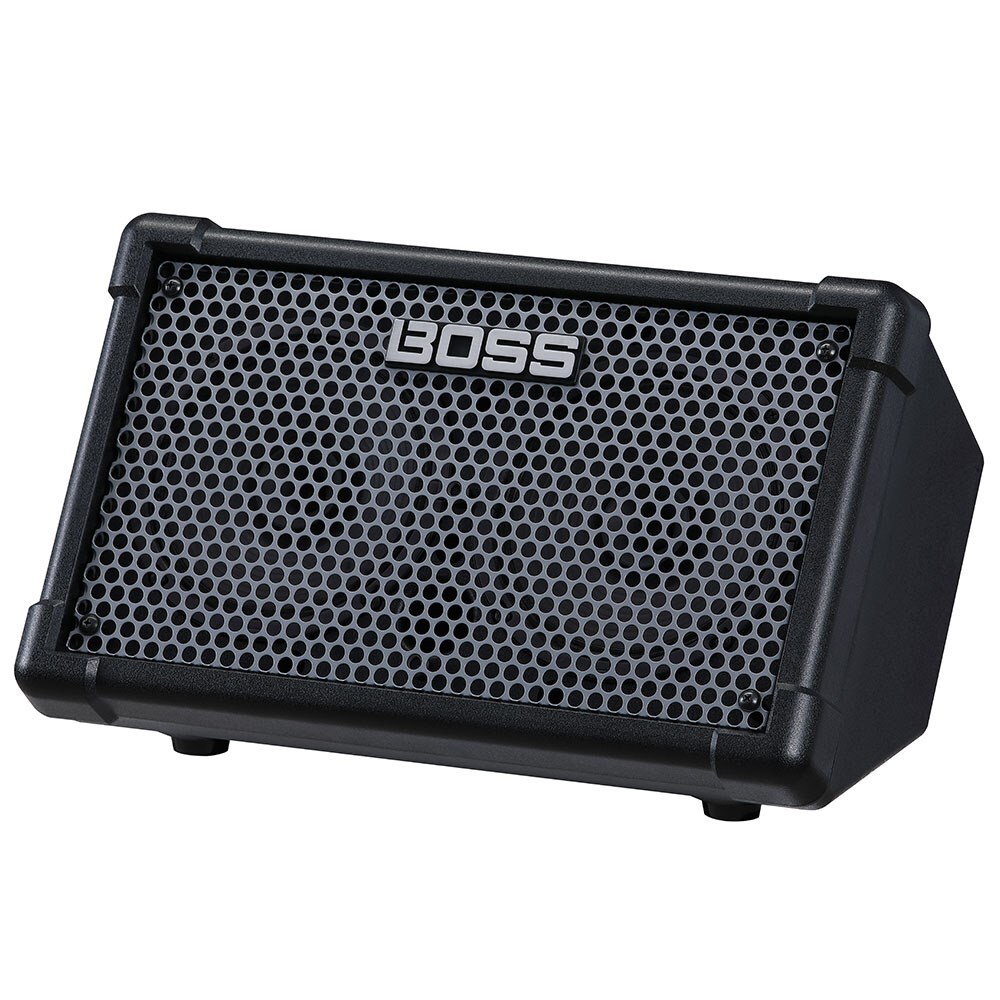

Evolved from the best-selling Roland CUBE Street—and newly rebranded with the BOSS name—this battery-driven powerhouse provides rich stereo sound for busking and other mobile gigs. Dual channels allow you to plug in mics and instruments and sound great immediately, with no extra gear to carry around. A vocal harmony function, looper, and effects are also on hand to lift your performances and impress the crowd. And with the optional Bluetooth® Audio MIDI Dual Adaptor (BT-DUAL), you can wirelessly stream backing tracks and control CUBE Street II functions from your phone or tablet.



SPECIFICATIONS

Rated Power Output

10 W (5 W + 5 W)

Nominal Input Level

MIC/INSTRUMENT INPUT: -40 dBu (2 k ohm)/-20 dBu (11 k ohm)
GUITAR/MIC INPUT:-10 dBu(1 M ohm)
i-CUBE LINK/AUX IN: -20 dBu (15 k ohm)

Nominal Output Level

LINE OUT : -10 dBu (MONO)

Speakers

16 cm (6.5 inches) x 2

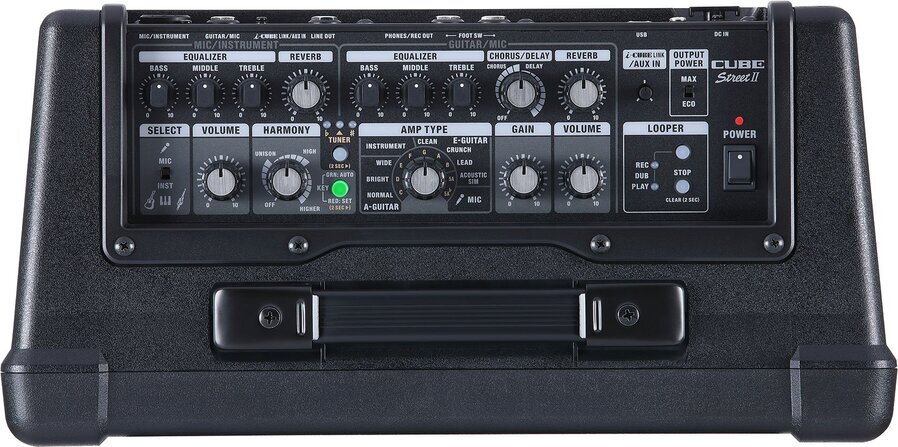

Controls

POWER switch
OUTPUT POWER switch (MAX, ECO)
LOOPER button
STOP button

[MIC/INSTRUMENT]
SELECT switch (MIC, INST)
VOLUME knob
HARMONY knob
KEY button
BASS knob
MIDDLE knob
TREBLE knob
REVERB knob

[TUNER]
TUNER button

[GUITAR/MIC]
AMP TYPE knob (NORMAL, BRIGHT, WIDE, INSTRUMENT, CLEAN, CRUNCH, LEAD, ACOUSTIC SIM, MIC)
GAIN knob
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
CHORUS/DELAY knob (CHORUS, DELAY)
REVERB knob

[i-CUBE LINK/AUX IN]
i-CUBE LINK/AUX IN knob

Indicators

POWER
TUNER
KEY
REC
PLAY

Connectors

[INPUT]
MIC/INSTRUMENT jack: Combo type (XLR type, 1/4-inch TRS phone type), balanced
GUITAR/MIC jack: 1/4-inch phone type
i-CUBE LINK/AUX IN jack: 4-pole miniature phone type

[OUTPUT]
LINE OUT jack: 1/4-inch phone type
PHONES/REC OUT jack: Stereo miniature phone type

[FOOT SW]
SW 1 HARMONY/MIC/INST jack: 1/4-inch TRS phone type
SW 2 LOOPER/GUITAR/MIC jack: 1/4-inch TRS phone type

Bluetooth ADAPTOR connector: Dedicated connector
USB port: USB B type
DC IN jack

Power Supply

AC adaptor (DC 9 V)
Alkaline battery (AA, LR6) x 8
Rechargeable Ni-MH battery (AA, HR6) x 8

Current Draw

390 mA

Expected battery life under continuous use

[OUTPUT POWER switch: MAX (Maximum power output: 10 W)]
Alkaline battery: Approximately 8 hours
Rechargeable Ni-MH battery: Approximately 10 hours (*1)

[OUTPUT POWER switch: ECO (Maximum power output: 5 W)]
Alkaline battery: Approximately 11 hours
Rechargeable Ni-MH battery: Approximately 14 hours (*1)

*1 When using batteries having a capacity of 2,500 mAh.
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories

Owner's Manual
Leaflet USING THE UNIT SAFELY
AC adaptor
Power cord
Mini cable (4-pole miniature phone type)

Options (sold separately)

Bluetooth® Audio MIDI Dual Adaptor: BT-DUAL
Carrying case: CB-CS1
Footswitch: FS-5U, FS-6, FS-7

SIZE AND WEIGHT

Width

414 mm
16-5/16 inches

Depth

285 mm
11-1/4 inches

Height

255 mm
10-1/16 inches

Weight (excluding AC adaptor)

4.4 kg
9 lbs 12 oz
